1、D F M 常 用 中 英 文 對 照1、這個紅色面在前模方向 / 后模方向 / 行位方向有倒扣。This red surface is undercut at cavity side / core side / slider side.2、這些紅色面在前模方向 / 后模方向 / 行位方向有倒扣。These red surfaces are undercut at cavity side / core side / slider side.3、產品的這個位置太小，導致模具在前模方向 / 后模方向 / 行位方向有薄鋼位。This position is too small and it will

2、 bring the thin steel at cavity side /core side / slider side.4、這些紅色線是前后模 / 鑲件/ 行位/斜頂分型線。These red lines are the parting line of cavity and core / insert / slider / lifter.5、此產品使用推板 / 推塊頂出。Use the stripper plate / ejector block to eject this part.6、前模/ 后模斜內行位。Inner angle slider at cavity / core side

3、.7、為了簡化模具結構建議改變此處出模方向。Suggest to change the draft direction of this position to makethe mold structure simply.8、最終的進膠位置根據模流分析。Finally gate position according the mold flow analysis.9、斜頂與后面的柱位空間太小， 斜頂在運動時會干預到柱子， 請考慮移動這個柱子的位置。This lifter intervene with the pole during ejection, please consider changin

4、g the position of the pole.10、此處有薄鋼位，強度缺乏而且不容易冷卻。The strength of this area is too weak and it is hard to cool because the thin steel.11、此處有尖角，填充困難。It is hard to fill for this area because the sharp feature.12、此處料位太厚，會有縮水，建議減膠改善。Wesuggest to reduce somewall thickness to avoid the sink mark for this p

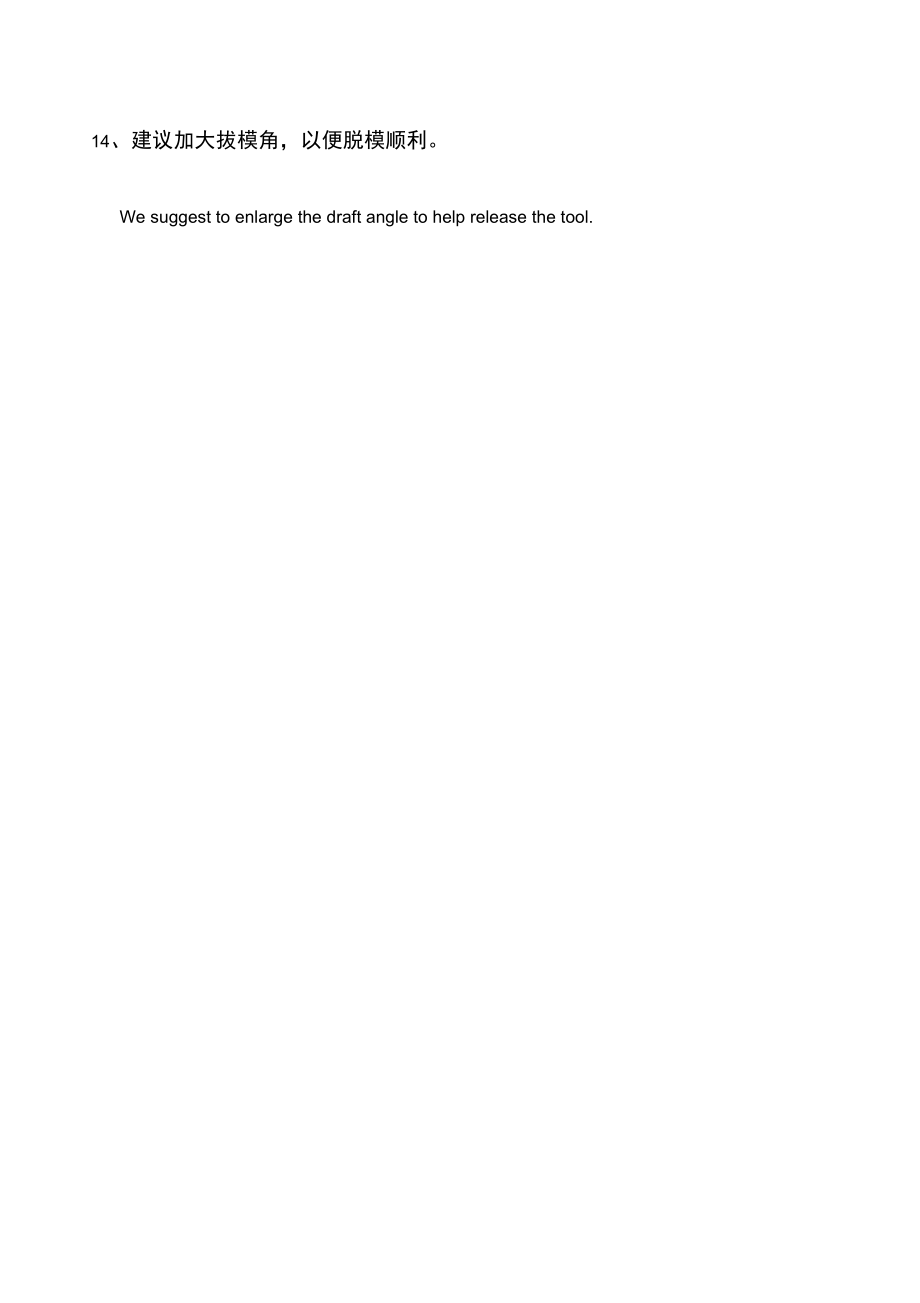

5、osition.13、此處的行位夾線在外觀面上，請確認是否接受？Please confirm whether it is acceptable to have a slider line on the visible surface?14、建議加大拔模角，以便脫模順利。We suggest to enlarge the draft angle to help release the tool.15、如果分型面此處，模具上會有尖角和刀口，對模具壽命有影響。There are sharp edges if we set the parting line here, it will reduce t

6、he tool life.16、此處料厚段差很大，成品外表會有應力痕，建議修改如圖示。The thickness is not equal and it will bring the stress lines on the surface, suggest to improve the part as the picture shown.17、此大行位上有小行位，開模時小行位需先退，大行位做延時，合模時那么相反。The small slider is inside the big slider, when the mold open, the small slider need to recede first and the big slider have to postpone. When the mold close, it is contrary.18、此處需做強頂。This position need to force ejection.19、由于此處沒有足夠空間下熱咀，所以需做一個柱子進膠。Th
